| Brand Name : | Fortune Sky |
| Model Number : | BJ-900 |
| Certification : | CCC,CE |

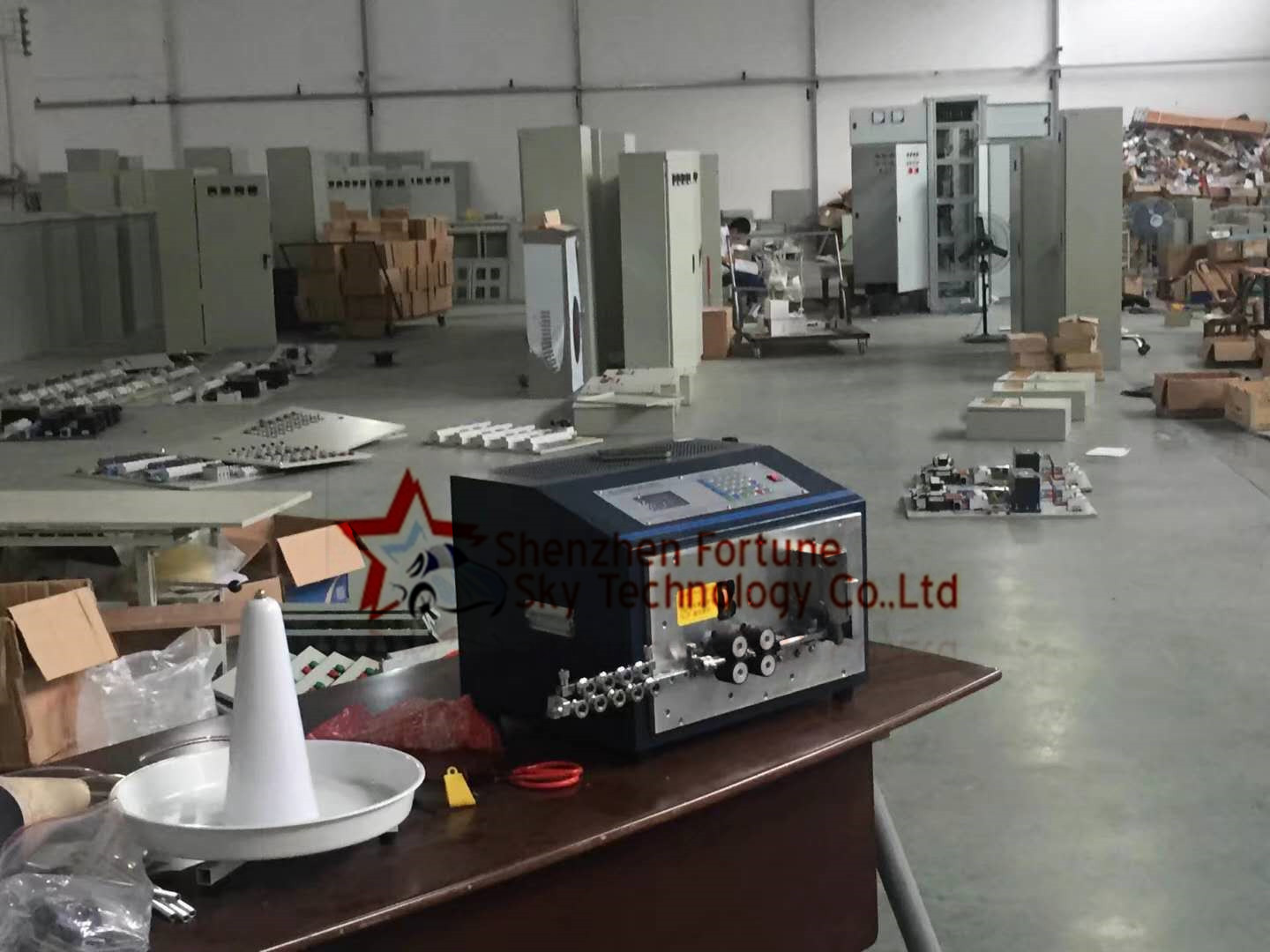

This fully automatic wire cut strip forming machine uses hybrid drive microcomputer full LCD control system, for car wiring harness,electricity,power distribution box,battery box and other industries, cutting, stripping, dual direction 30 degree to 90 degree forming.
Machine Working Vedio: https://vimeo.com/187317705
| Model No. | BJ-900 (16 mm2) | BJ-900 (25 mm2) | BJ-900 (6 mm2) |
| Function | Wire cutting,stripping,bending | ||
| Cutting Wire | 0.1-16mm2 | 0.1-25mm2 | 0.1-6mm2 |
| Production/Speed | 200-800 pcs/hour (decided by wire) | ||
| Cutting Length | 0.1-99999.9mm | ||
| Stripping Length | Wire head:0.1-50mm Wire tail:0.1-20mm | Wire head:0.1-30mm Wire tail:0.1-20mm | |
| Stepper Motor Accuracy | Mute hybrid stepper motor 0.1mm per stepping | ||
| Remark Function | Automatic inlet wire, automatic outlet wire,timing start | ||
| Driving Mode | Four wheels driven | Two wheels driven | |
| Machine Size (mm) | 530(L)x420(W)x370(H) | 420(L)x297(W)x345(H) | |
| Machine Weight | 38kg | 30kg | |
| Blade Material | Import tungsten steel/highspeed steel | ||
|
|
