| Brand Name : | Fortune Sky |
| Model Number : | BJ-880 |
| Certification : | CCC,CE |
| Price : | USD1-USD9999 |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram , Paypal |
| Supply Ability : | 100 pcs per month |
| Delivery Time : | 2-3 working days |
This full or partial automatic wire stripping machine for stripping wire from 32AWG to 14AWG uses a hybrid drive microcomputer full LCD operating system, cutting, stripping, one time completion, but also the front half stripping with twisted wire, protect the integrity of the wire, special wire can instantly change the size of wire specifications.

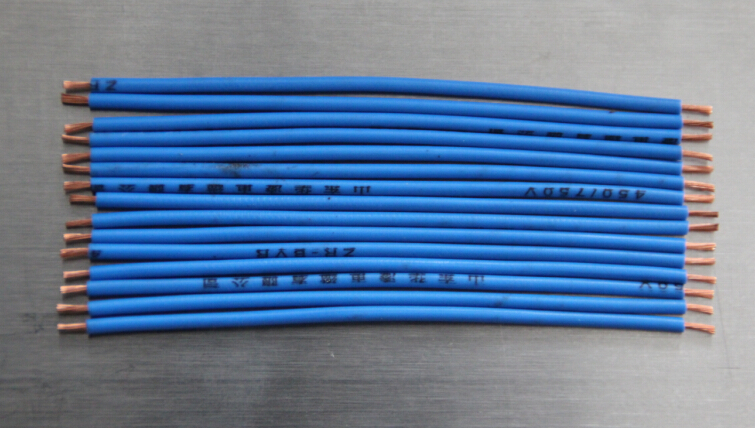

Full or partial automatic wire stripping machine cut strip 20mm wire working vedios:
| Model No. | BJ-600 | BJ-650 | BJ-800 | BJ-880 |
| Main Function | Cut wire,both-ends stripping | Cut wire,both-ends stripping,intermediate strip, (wire twisting for BJ-880) | ||
| Cutting wire core | 0.1-4.0mm2 (30AWG-14AWG) | 0.1-4.0mm2 (30AWG-14AWG)x2 | 0.1-2.0mm2 (32AWG-14AWG)x2 | 0.1-2.5mm2 (30AWG-14AWG)x2 |
| Processing Speed(decided by wire material) | 2000-8000 pcs/hour | 4000-16000 pcs/hour | 2000-8000 pcs/hour | |
| Cutting Length | 0.1-9999.9mm | |||
| No. Of Intermediate Stripping | 0 | 13 | ||
| Stripping Length | Strip head: 1-30mm Strip tail: 0.1-15mm | Strip head: 1-30mm Strip tail: 0.1-30mm | Strip head: 1-50mm Strip tail: 0.1-30mm | Strip head: 1-30mm Strip tail: 0.1-20mm |
| Accuracy of outlet inlet motor | Mute hybrid stepping motor 0.1mm per stepping | |||
| Other functions | Automatic wire inlet & outlet, timing | |||
| Driving Mode | 4 wheels | |||
| Dimension(mm) | 380x250x320 | 420x297x345 | 420x297x345 | 420x297x345 |
| Net Weight | 25 | 28 | 32 | 35 |
| Blade Material | Import Tungsten Steel/High speed steel | |||
|
